Description
Product details

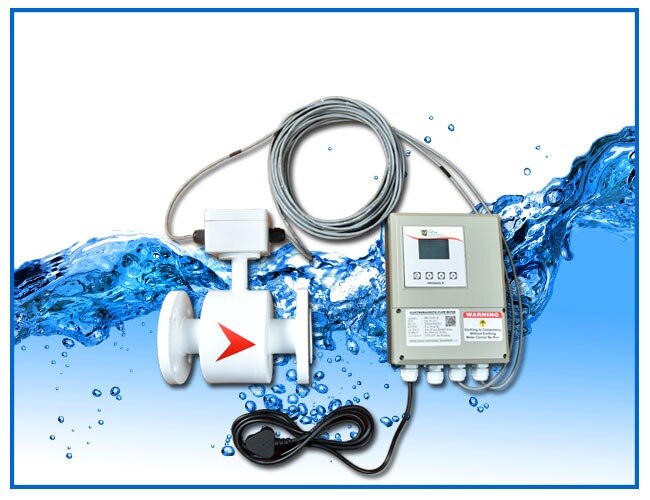

The electromagnetic flow meter accurately measures the flow rate of any conducting liquid or slurry that is flowing in closed pipes. it is obstruction less and hence offer no pressure drop in the process. ab-sence of moving parts ensures that there is no need for mainte-nance. the performance of the instrument is not affected by the properties of the material such as orrosiveness, viscosity, density. acidity, and alkalinity, it can measure the flow of liquids, pastes and slurries in water, wastewater, suitable for chemical, fertilizer, paper, dairy, sugar, food and beverages industries Technical Specifications: - Model: PROMAG/PROMAG I/ PROMAG R - Size: DN15-DN500 - Media: Conductive liquid, slurry Operating Temperature: 55°C - Conductivity: 25 uS/cm - Accuracy: ±0.5% of the Reading - Velocity:0.2-10m/s - Response Time: >100mSec - Repeatability: ±1% Media Temperature: 70°C Rubber / 150°C PTFE - Display: flow rate, totalizer, velocity, flow rate ratio Display Type: LED/LCD - Power Supply: AC:85V-265V, DC:18V-38V - Converter Type: Integral/Remote - Protection Grade: IP65/IP68 - Explosion Proof: ExD - Liner: Rubber/PTFE/ PFA - Flowing Direction: Forward, Reverse - Electrode Number: 3 pcs - Material Of Construction: - Flange-MS/SS - Electrode-316L, Hastalloy C,Pt, Ta, - Coil Housing-MS/SS 304/SS316 - Process Connection: ASA 150 Class Flanged Signal Output: 4-20mA current output, pulse output, RS-485, Hart (Optional) - Process Pressure: 10Kg/cm2 (or specified by customer
