Home Products DIGITAL TURBINE FLOW METERS
DUAL DISPLAYS FOR CU
DUAL DISPLAYS FOR CU
COD not available

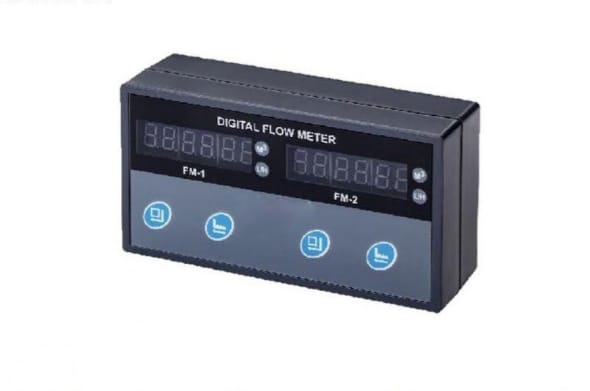

DIGITAL TURBINE FLOW METERS by Vision Enviro Instrument

DIGITAL TURBINE FLOW METERS

Share with
Share this on :

Description

Product details

DUAL DISPLAYS FOR CURRENT FLOW RATE (LPH) AS WELL AS TOTAL FLOW SENSOR AVAILABLE FOR 3/4", 1" AND 2" STANDARD PIPE SIZES. AMOUNT OF WATER (M3) HAS DESIGNED FOR INDUSTRIAL RO SYSTEM. PASSED IN INLET AND PRODUCT WATER. LED DISPLAY FOR INLET WATER AND PRODUCT WATER FLOW (LPH). EASY TO INSTALL IN EXISTING SYSTEM ALSO. FLOW TOTALIZING UP TO 9999 M ^ 3 FLOW RATE RANGE 150 ΤΟ 20,000 LPH AUTOMATIC DATA BACKUP WHEN POWER OFF SENSOR WIRE LENGTH 2 METER INSTALLATION: HORIZONTAL FLOW DIRECTION: ONE WAY TEMPERATURE: O TO 600 C PRESSURE: MAX 6.0 BAR (85 PSI) ACCURACY: ±5%

Keywords

Other Products

Related Products

The electromagnetic flow meter accurately measures the flow rate of any conducting liquid or slurry that is flowing in closed pipes. it is obstruction less and hence offer no pressure drop in the process. ab-sence of moving parts ensures that there is no need for mainte-nance. the performance of the instrument is not affected by the properties of the material such as orrosiveness, viscosity, density. acidity, and alkalinity, it can measure the flow of liquids, pastes and slurries in water, wastewater, suitable for chemical, fertilizer, paper, dairy, sugar, food and beverages industries Technical Specifications: - Model: PROMAG/PROMAG I/ PROMAG R - Size: DN15-DN500 - Media: Conductive liquid, slurry Operating Temperature: 55°C - Conductivity: 25 uS/cm - Accuracy: ±0.5% of the Reading - Velocity:0.2-10m/s - Response Time: >100mSec - Repeatability: ±1% Media Temperature: 70°C Rubber / 150°C PTFE - Display: flow rate, totalizer, velocity, flow rate ratio Display Type: LED/LCD - Power Supply: AC:85V-265V, DC:18V-38V - Converter Type: Integral/Remote - Protection Grade: IP65/IP68 - Explosion Proof: ExD - Liner: Rubber/PTFE/ PFA - Flowing Direction: Forward, Reverse - Electrode Number: 3 pcs - Material Of Construction: - Flange-MS/SS - Electrode-316L, Hastalloy C,Pt, Ta, - Coil Housing-MS/SS 304/SS316 - Process Connection: ASA 150 Class Flanged Signal Output: 4-20mA current output, pulse output, RS-485, Hart (Optional) - Process Pressure: 10Kg/cm2 (or specified by customer
View Details
ELECTROMEGNETIC FLOW METER
The electromagnetic flow meter accurately measures the flow rate of any conducting liquid or slurry that is flowing in closed pipes. it is obstruction less and hence offer no pressure drop in the process. ab-sence of moving parts ensures that there is no need for mainte-nance. the performance of the instrument is not affected by the properties of the material such as orrosiveness, viscosity, density. acidity, and alkalinity, it can measure the flow of liquids, pastes and slurries in water, wastewater, suitable for chemical, fertilizer, paper, dairy, sugar, food and beverages industries. Technical Specifications: - Model: PROMAG/PROMAG I/ PROMAG R - Size: DN15-DN500 - Media: Conductive liquid, slurry Operating Temperature: 55°C - Conductivity: 25 uS/cm - Accuracy: ±0.5% of the Reading - Velocity:0.2-10m/s - Response Time: >100mSec - Repeatability: ±1% Media Temperature: 70°C Rubber / 150°C PTFE - Display: flow rate, totalizer, velocity, flow rate ratio Display Type: LED/LCD - Power Supply: AC:85V-265V, DC:18V-38V - Converter Type: Integral/Remote - Protection Grade: IP65/IP68 - Explosion Proof: ExD - Liner: Rubber/PTFE/ PFA - Flowing Direction: Forward, Reverse - Electrode Number: 3 pcs - Material Of Construction: - Flange-MS/SS - Electrode-316L, Hastalloy C,Pt, Ta, - Coil Housing-MS/SS 304/SS316 - Process Connection: ASA 150 Class Flanged Signal Output: 4-20mA current output, pulse output, RS-485, Hart (Optional) - Process Pressure: 10Kg/cm2 (or specified by customer)
View Details
ELECTROMEGNETIC FLOW METER
VEI-2000F2 series Ultrasonic Flow is the new product of Vison Enviro Instruments, Ultrasound transmit time principle makes the measurement range from DN25 to DN600. The advantages include high ac- curacy strong anti-interference, reliability and sta- bility,multiple interface. Each parts can achieve to IP68, enable the meter work in any severe environ- ment. IP68 PROTECTION CLASS Whole machine waterproof whole machine is sealed completely reaching IP68 protection level. Parts waterproof Each part is waterproof, operating normally in the event of water inside. ▲ WATERPROOF KEYBOARD 4-key board design, support setting operation password. ▲ MULTIPLE INTERFACE Communication interface: RS485 interface Output: 4-20mA analog/OCT pulse/Relay signal Heat measurement achieve heat measurement by connecting 3-wired PT100 temperature transducers Input: 3 way 4-20mA analog input, acquisition signals of temperature, press, liquid level, etc. TEMPERATURE AND PRESSURE Temperature range:-30℃~160℃ P/N: 0-2.5Mpa (Optional) HIGH ACCURACY MEASUREMENT Accuracy:0.5% 1%. ULTRASOUND MEASUREMENT No rotation, no moving parts, Long term measurement with high accuracy. Applicable to variety of water quality, including the water gravel and weeds.
View Details
INLINE ULTRASONIC FLOW METER
