Description
Product details

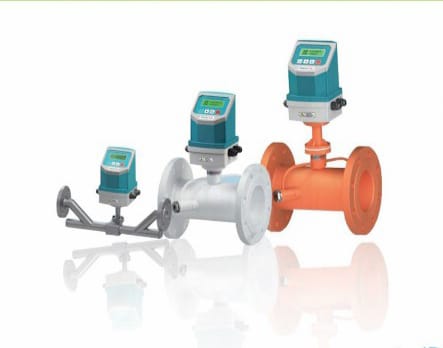

VEI-2000F2 series Ultrasonic Flow is the new product of Vison Enviro Instruments, Ultrasound transmit time principle makes the measurement range from DN25 to DN600. The advantages include high ac- curacy strong anti-interference, reliability and sta- bility,multiple interface. Each parts can achieve to IP68, enable the meter work in any severe environ- ment. IP68 PROTECTION CLASS Whole machine waterproof whole machine is sealed completely reaching IP68 protection level. Parts waterproof Each part is waterproof, operating normally in the event of water inside. ▲ WATERPROOF KEYBOARD 4-key board design, support setting operation password. ▲ MULTIPLE INTERFACE Communication interface: RS485 interface Output: 4-20mA analog/OCT pulse/Relay signal Heat measurement achieve heat measurement by connecting 3-wired PT100 temperature transducers Input: 3 way 4-20mA analog input, acquisition signals of temperature, press, liquid level, etc. TEMPERATURE AND PRESSURE Temperature range:-30℃~160℃ P/N: 0-2.5Mpa (Optional) HIGH ACCURACY MEASUREMENT Accuracy:0.5% 1%. ULTRASOUND MEASUREMENT No rotation, no moving parts, Long term measurement with high accuracy. Applicable to variety of water quality, including the water gravel and weeds.
